| Switching
Power Supply with PFC 600S-P / 800S-P |
|
|
 Universal
AC Input.
0.98
Typical of Power Factor.
Forced
Current Sharing at Parallel Operation.
Power
Failure Signal.
Remote
Sense.
Remote
ON / OFF control .
Programmable
Output Voltage.
SC
/ OV / OL / OT Protections.
|
|
<Datasheet
Download>
|
|
| COTEK
MODEL NO. |
INPUT
VOLT |
POWER
WATT |
SINGLE
OUTPUT |
DIMENSION(WxLxH)mm
|
Weight |
Safety
Approval |
| 5V |
12V |
15V |
24V |
48V |
| 600S-P |
90~260VAC |
600W |
100A |
50A |
40A |
25A |
12A |
120x290x68 |
2.3kgs |
CUL,TUV |
| 800S-P |
90~260VAC |
800W |
--- |
66A |
53A |
33A |
16A |
120x290x68 |
2.3kgs |
CUL,TUV
|
|
| Switching
Power Supply with PFC 1K2S-P / 1K5S-P |
|
|
Universal
AC Input.
0.98
Typical of Power Factor.
Forced
Current Sharing at Parallel Operation.
Power
Failure Signal.
Remote
Sense.
Remote
ON / OFF control .
Programmable
Output Voltage.
SC
/ OV / OL / OT Protections.
|
|
<Datasheet
Download>
|
|
| COTEK
MODEL NO. |
INPUT
VOLT |
POWER
WATT |
SINGLE
OUTPUT |
DIMENSION(WxLxH)mm
|
Weight |
Safety
Approval |
| 5V |
12V |
15V |
24V |
48V |
| 1K2S-P |
90~260VAC |
1200W |
200A |
100A |
80A |
50A |
25A |
120x290x132 |
4.5kgs |
CUL,TUV |
| 1K5S-P |
90~260VAC |
1500W |
--- |
125A |
100A |
62A |
31A |
120x290x132 |
4.5kgs |
CUL,TUV |
|
|
|
|
| Switching
Power Supply with PFC 2K0S-P / 2K4S-P |
|
|
Universal
AC Input.
0.98
Typical of Power Factor.
Forced
Current Sharing at Parallel Operation.
Power
Failure Signal.
Remote
Sense.
Remote
ON / OFF control .
Programmable
Output Voltage.
SC
/ OV / OL / OT Protections.
|
|
<Datasheet
Download>
|
| |
|
| COTEK
MODEL NO. |
INPUT
VOLT |
POWER
WATT |
SINGLE
OUTPUT |
DIMENSION(WxLxH)mm
|
Weight |
Safety
Approval |
| 5V |
12V |
15V |
24V |
48V |
| 2K0S-P |
90~260VAC |
2000W |
300A |
166A |
133A |
83A |
41A |
212x320x124 |
8.9kgs |
|
| 2K4S-P |
90~260VAC |
2400W |
--- |
200A |
160A |
100A |
50A |
212x320x124 |
8.9kgs |
|
|
|
|

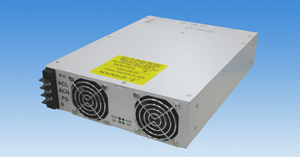

| Switching
Power Supply with PFC 1K2U / 1K5U |
 |
|
Universal
AC Input.
0.98
Typical of Power Factor.
Forced
Current Sharing at Parallel Operation.
5
LED Indicators display AC , DC , OTP status.
Power
Failure Signal.
Remote
Sense.
Remote
ON / OFF control .
Programmable
Output Voltage.
SC
/ OV / OL / OT Protections.
|
|
|
<Datasheet
Download>
|
|
| COTEK
MODEL NO. |
INPUT
VOLT |
POWER
WATT |
SINGLE
OUTPUT |
DIMENSION(WxLxH)mm
|
Weight |
Safety
Approval |
| 9V |
12V |
15V |
18V |
24V |
| 1K2U |
90~260VAC |
1200W |
133A |
100A |
80A |
25A |
66A |
63.5x203.2x279.4 |
3.75kgs |
|
| 1K5U |
90~260VAC |
1500W |
--- |
125A |
100A |
83A |
62A |
63.5x203.2x279.4 |
3.75kgs |
|
| COTEK
MODEL NO. |
INPUT
VOLT |
POWER
WATT |
SINGLE
OUTPUT |
DIMENSION(WxLxH)mm
|
Weight |
Safety
Approval |
| 30V |
36V |
48 |
60V |
|
| 1K2U |
90~260VAC |
1200W |
40A |
33A |
25A |
20A |
|
63.5x203.2x279.4 |
3.75kgs |
|
| 1K5U |
90~260VAC |
1500W |
50A |
41A |
31A |
25A |
|
63.5x203.2x279.4 |
3.75kgs |
|
|
| |
| |
|
